The body is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.
1. Automatic and CNC pipe bending machine;
2. Equipped with 2 programmable axis;
3. Feeding: servomotor drive; Rotation: servomotor drive.(the servomotor from Mitsubishi);
4. Bending: hydraulic and encoder control (2A);
5. Imported hydraulic system and PLC unit or IPC system;
6. Automatic lubrication system for moving areas;
7. Self-diagnostic system, detecting the error immediately;
8. Multiple groups pipe-bending information storage;

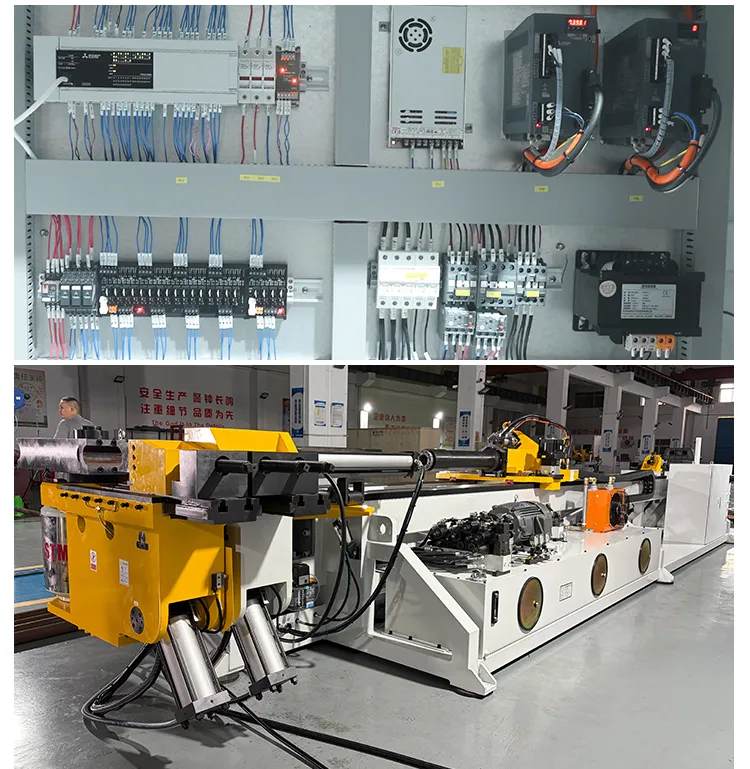

9. Touch screen system and human/machine interface control provide user friendly operations;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
