STB-25CNC-5A-3S Auto Pipe Bending Machine
STB-25CNC-5A-3S Auto Pipe Bending Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by AC servomotor (with brake), left-right by AC servomotor.
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control.
12. Optional: 3D bending simulation, collision prevention.
13. Optional: auto loading and unloading system.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by AC servomotor (with brake), left-right by AC servomotor.
8. Automatic moving parts lubrication.
9. Anticipated mandrel retraction unit.
10. Standing pedestal, serves emergency stop and remote control.
11. Industrial PC (windows system) assorted with touch screen display, 3D preview, remote control.
12. Optional: 3D bending simulation, collision prevention.
13. Optional: auto loading and unloading system.

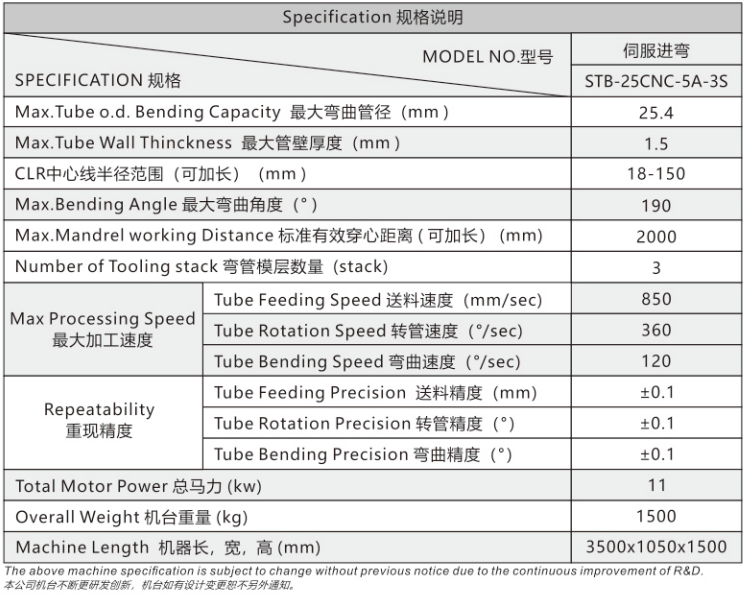

Parameters
