STB-50CNC-2A 3D CNC Mandrel Pipe Bending Machine
STB-50CNC-2A 3D CNC Mandrel Pipe Bending Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multifunctional; each action of machine is controlled by PLC programmed control system or IPC.
1. 3D mandrel pipe bending machine
2. Equipped with 3 programmable axis (YBC)
3. Feeding (Y-axis): AC servomotor drive; Rotation (B-axis): AC servomotor drive.
4. Bending (C-axis): Hydraulic drive (2A type) or AC servomotor drive (3A type)
5. High quality hydraulic system and PLC unit (standard components).
6. Automatic lubrication system for moving areas
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage
9. Touch screen system and human/machine interface control provide user friendly operations.
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
1. 3D mandrel pipe bending machine
2. Equipped with 3 programmable axis (YBC)
3. Feeding (Y-axis): AC servomotor drive; Rotation (B-axis): AC servomotor drive.
4. Bending (C-axis): Hydraulic drive (2A type) or AC servomotor drive (3A type)
5. High quality hydraulic system and PLC unit (standard components).
6. Automatic lubrication system for moving areas
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage
9. Touch screen system and human/machine interface control provide user friendly operations.
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.

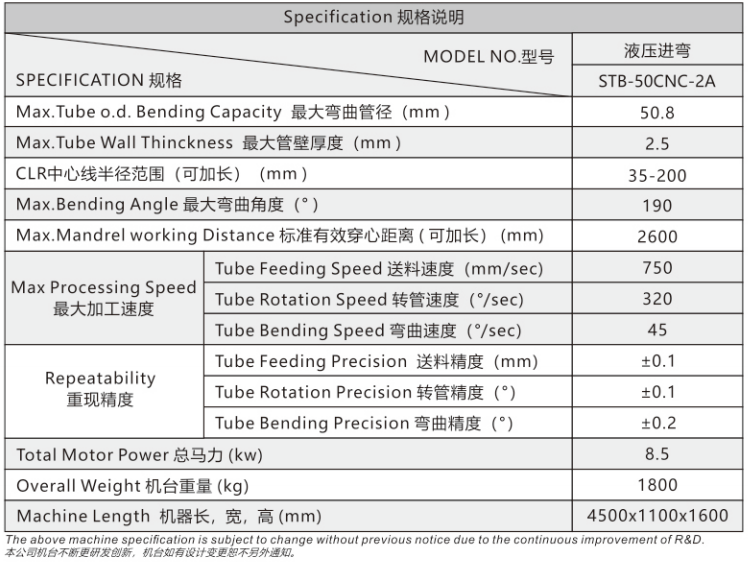

Parameters

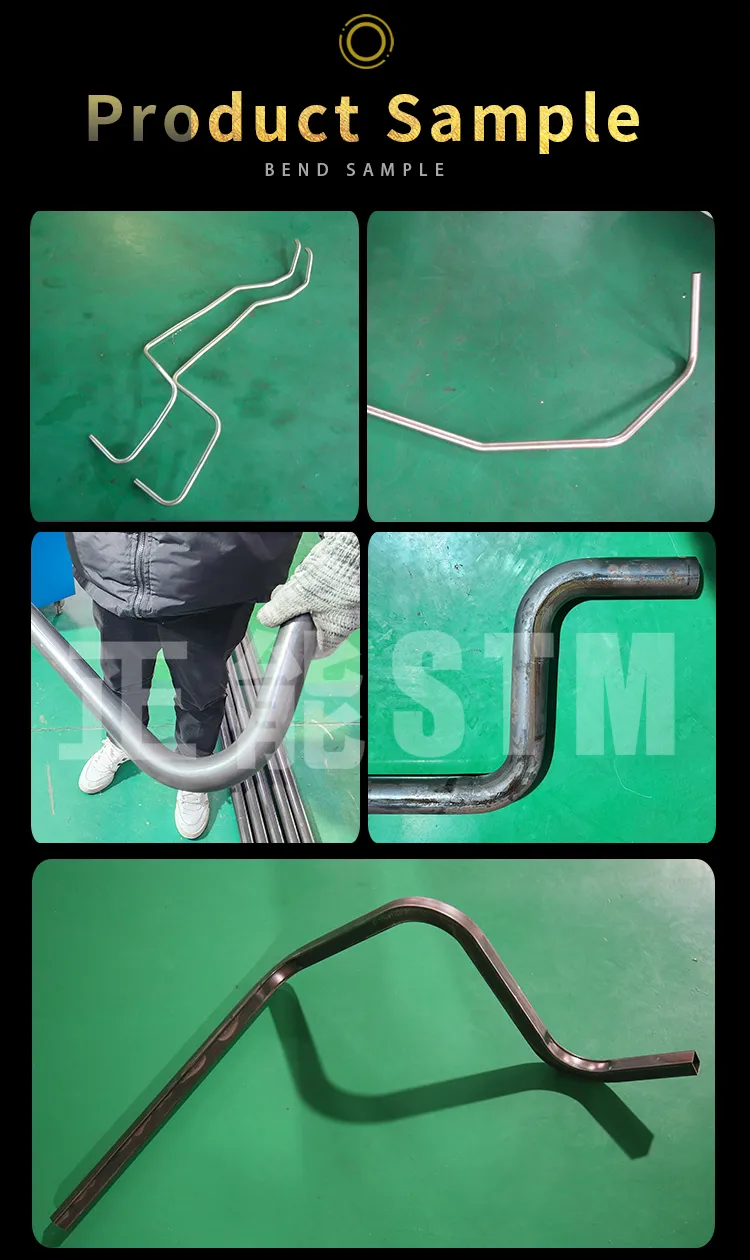

Application
