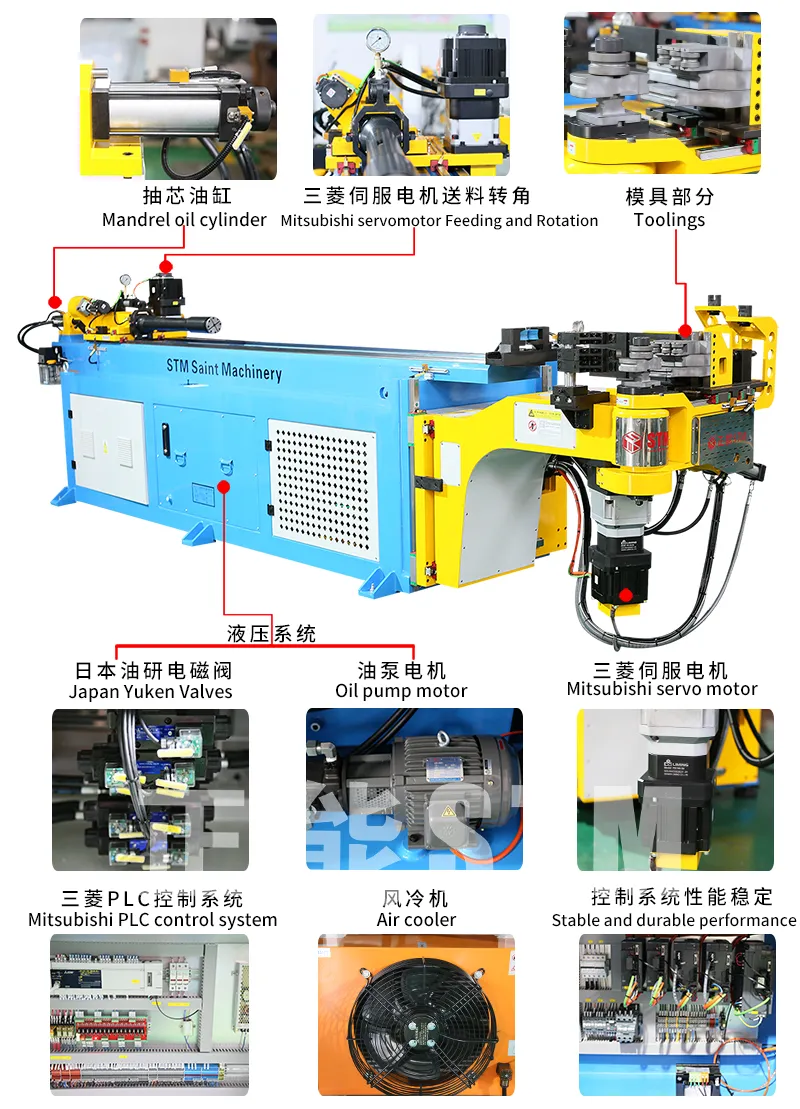

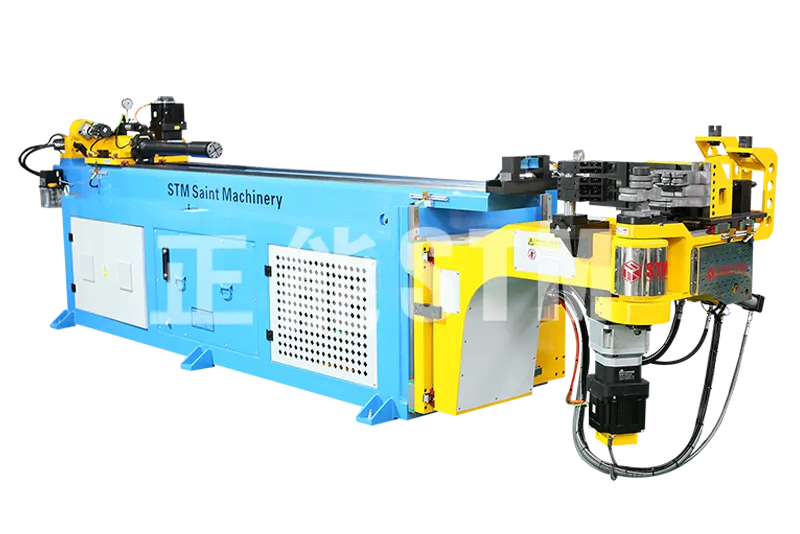

STB-38CNC-5A Mandrel Automatic Tube Bending Machine
STB-38CNC-5A Mandrel Automatic Tube Bending Machine
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Parameters
| Model | STB-38CNC-5A |
|---|---|
| Bending capability OD×WT (carbon steel) | Φ38.1× 2.0mm |
| Bending radius (by tools) | 25～180 mm |
| Bending angle | 0～195° |
| Max bending length with mandrel | 2600mm |
| Bending speed | 125°/sec |
| Bending accuracy | ±0.1° |
| Feeding speed | 30～750 mm/sec |
| Feeding accuracy | ±0.1 mm |
Application
Video
>
Related Products
