STB-38CNC-5A-6S-LR Left And Right Tube Bender 6-Stack Tooling
STB-38CNC-5A-6S-LR Left And Right Tube Bender 6-Stack Tooling
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Left and right CNC bender:
1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.

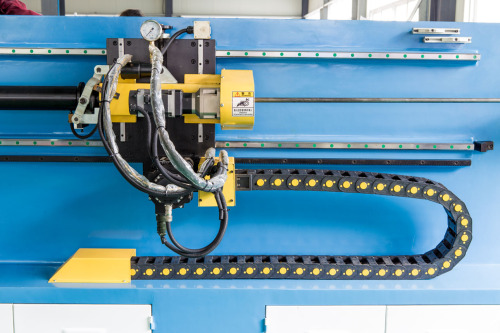

3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.

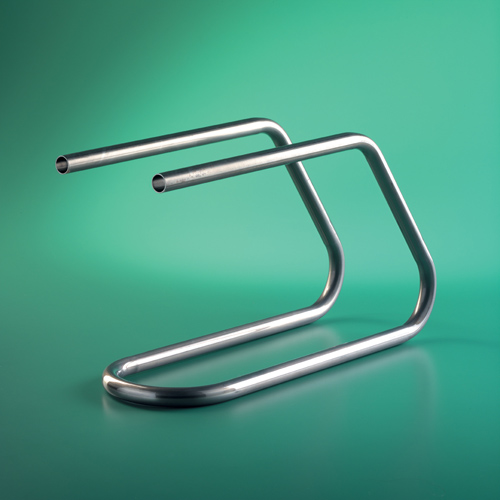

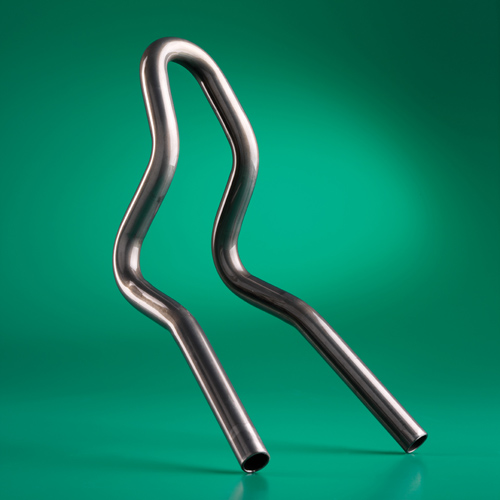

6. With roll bending function (PUSH BENDING), can make big radius by rolling.

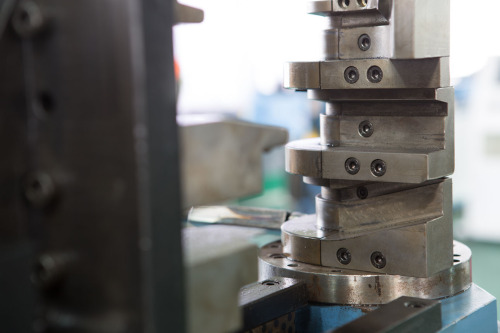

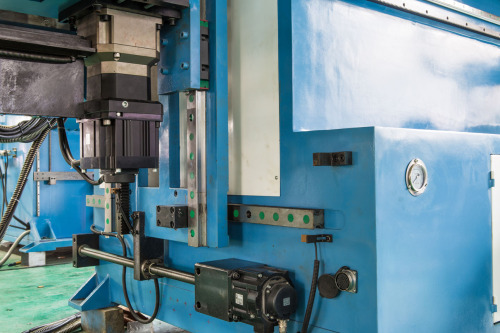

7. Tooling shift : motion up-down by AC servomotor, left-right by AC servomotor. 3-stack tooling on the top; 3-stack tooling beneath.
8. Left and right bending can avoide most interference.
9. Automatic moving parts lubrication.
10. Anticipated mandrel retraction unit.
11. Standing pedestal, serves emergency stop and remote control.
12. Industrial PC (windows system) assorted with touch screen display, capable of 3D bending simulation, 3D preview, remote control (TeamViewer) and collision prevention (optional)
13. Optional: auto loading and unloading system.
1. Bend-arm (C-axis) by AC servomotor.
2. Clamp die by hydraulic; pressure die by hydraulic.
3. Carriage (Y-axis) by AC servomotor.
4. With rear booster driven by AC servomotor.
5. Collets (B-axis): rotation by AC servomotor, grip by hydraulic.
6. With roll bending function (PUSH BENDING), can make big radius by rolling.
7. Tooling shift : motion up-down by AC servomotor, left-right by AC servomotor. 3-stack tooling on the top; 3-stack tooling beneath.
8. Left and right bending can avoide most interference.
9. Automatic moving parts lubrication.
10. Anticipated mandrel retraction unit.
11. Standing pedestal, serves emergency stop and remote control.
12. Industrial PC (windows system) assorted with touch screen display, capable of 3D bending simulation, 3D preview, remote control (TeamViewer) and collision prevention (optional)
13. Optional: auto loading and unloading system.
Parameters
| Model | STB-38CNC-5A-6S-LR | STB-25CNC-5A-6S-LR |
|---|---|---|
| Bending capability OD×WT (carbon steel) | Φ38.1× 2.0mm | Φ25.4× 1.6mm |
| Bending radius (by tools) | 25～180 mm | 18～160 mm |
| Bending angle | 0～195° | 0～195° |
| Max bending length with mandrel | 2600mm | 2200mm |
| Bending speed | 125°/sec | 150°/sec |
| Bending accuracy | ±0.1° | ±0.1° |
| Feeding speed | 30～750 mm/sec | 20～900 mm/sec |
| Feeding accuracy | ±0.1 mm | ±0.1 mm |
| Rotating speed | 320°/sec | 320°/sec |
| Rotating accuracy | ±0.1° | ±0.1° |
| Tools stack | 2 | 2 |
| Bending | AC Servomotor | AC Servomotor |
| Feeding/Booster | AC Servomotor | AC Servomotor |
| Rotating | AC Servomotor | AC Servomotor |
| Tool shifting (6-stack) |
Up and down (AC Servomotor ) Left and right (AC Servomotor ) |
Up and down (AC Servomotor ) Left and right (AC Servomotor ) |
| Main motor power | 5.5 KW | 4 KW |
| System hydraulic pressure | 12MPa | 12MPa |
| Size | 4850×2500×2100mm | 4000×1900×1800mm |
| Weight | 2800 kg |
2300 kg |
