STB-114CNC-2A Automatic Mandrel Pipe Bender
STB-114CNC-2A Automatic Mandrel Pipe Bender
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
The body is made through welding, the mechanical part through assembly; using imported hydraulic system and electronic control system.
1. Automatic and CNC pipe bending machine;
2. Equipped with 2 or 3 programmable axis;
3. Feeding: servomotor drive; Rotation: servomotor drive.(the servomotor from Mitsubishi);
4. Bending: hydraulic and encoder control (2A); servomotor bending (3A);
5. Imported hydraulic system and PLC unit or IPC system;
6. Automatic lubrication system for moving areas;
7. Self-diagnostic system, detecting the error immediately;
8. Multiple groups pipe-bending information storage;
9. Touch screen system and human/machine interface control provide user friendly operations;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
1. Automatic and CNC pipe bending machine;
2. Equipped with 2 or 3 programmable axis;
3. Feeding: servomotor drive; Rotation: servomotor drive.(the servomotor from Mitsubishi);
4. Bending: hydraulic and encoder control (2A); servomotor bending (3A);
5. Imported hydraulic system and PLC unit or IPC system;
6. Automatic lubrication system for moving areas;
7. Self-diagnostic system, detecting the error immediately;
8. Multiple groups pipe-bending information storage;
9. Touch screen system and human/machine interface control provide user friendly operations;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
Parameters
| Model | STB-114CNC-2A-1S | STB-130CNC-2A-1S |
|---|---|---|
| Bending capability OD×WT (carbon steel) | Φ114× 8mm | Φ130× 10 mm |
| Bending radius | 80～550 mm | 100～580 mm |
| Bending angle | 0～190° | 0～190° |
| Max bending length with mandrel | 6000mm | 6000mm |
| Bending speed | Max 10°/sec | Max 10°/sec |
| Bending accuracy | ±0.1° ±0.05° (3A) |
±0.1° ±0.05° (3A) |
| Feeding speed | 20～200 mm/sec | 20～180 mm/sec |
| Feeding accuracy | ±0.1 mm | ±0.1 mm |
| Rotating speed | 75°/sec | 75°/sec |
| Rotating accuracy | ±0.1° | ±0.1° |
| Tools stack | 1 | 1 |
| Bending | Hydraulic (2A) Electric Servomotor (3A) |
Hydraulic (2A) Electric Servomotor (3A) |
| Feeding/Booster | Electric Servomotor | Electric Servomotor |
| Rotating | Electric Servomotor | Electric Servomotor |
| Main motor power | 15 KW | 15 KW |
| System hydraulic pressure | 14MPa | 14MPa |
| Size | 7600×2500×2200mm | 7700×2700×2200mm |
| Weight | 7000 kg | 7500 kg |

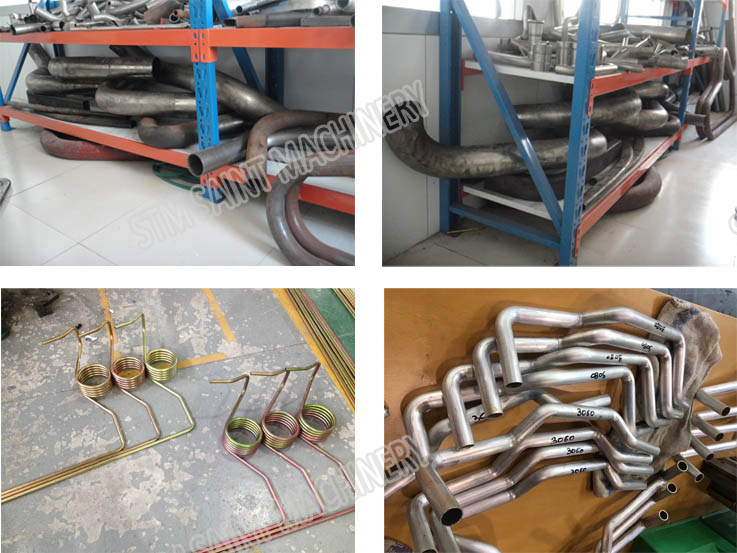

Application
