STB-10CNC-3A-AL Auto Loading Tube Bender
STB-10CNC-3A-AL Auto Loading Tube Bender
description1
Zipper closure
1/5 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the
body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them
in
place during workout
Description
Using industrial touch screen, with the simple operation interface in English; high precision, high degree of automation and multifunctional; each action of machine is controlled by PLC programme control system or IPC.
1. 3D mandrel pipe bending machine
2. Equipped with 3 programmable axis (YBC)

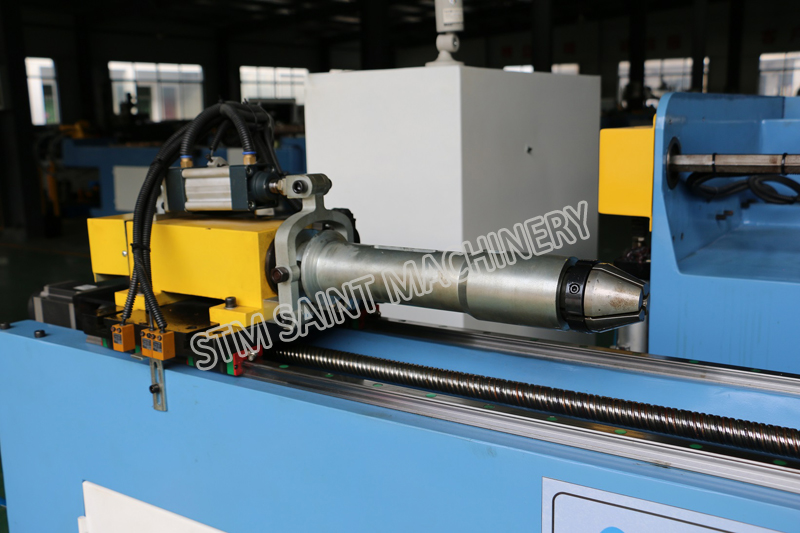

3. Feeding (Y-axis): AC servomotor drive; Rotation (B-axis): AC servomotor drive.
4. Bending (C-axis): AC servomotor drive (3A type)
5. High quality hydraulic system and PLC unit (standard components).
6. Automatic lubrication system for moving areas
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage
9. Touch screen system and human/machine interface control provide user friendly operations.
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
11. Optional: IPC Industrial PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention(optional); TeamViewer can make the remote control for the machine.
1. 3D mandrel pipe bending machine
2. Equipped with 3 programmable axis (YBC)
3. Feeding (Y-axis): AC servomotor drive; Rotation (B-axis): AC servomotor drive.
4. Bending (C-axis): AC servomotor drive (3A type)
5. High quality hydraulic system and PLC unit (standard components).
6. Automatic lubrication system for moving areas
7. Self-diagnostic system, detecting the error immediately.
8. Multiple groups pipe-bending information storage
9. Touch screen system and human/machine interface control provide user friendly operations.
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
11. Optional: IPC Industrial PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention(optional); TeamViewer can make the remote control for the machine.
Parameters
| Parameters | STB-10CNC-3A-AL |
|---|---|
| Bending capability |
Max Φ10×1.2 mm (mild steel, copper, aluminum) Φ8×1 mm (stainless steel) |
| Bending radius | 5~30 mm |
| Bending angle | 0~195° |
| Max clip pipe length | 700 mm |
| Bending speed | 280°/sec |
| Bending accuracy | ±0.1° |
| Feeding speed | 1000 mm/sec |
| Feeding accuracy | ±0.1 mm |
| Rotating speed | 720°/sec |
| Rotating accuracy | ±0.1° |
| Rotating drive | AC servo motor |
| Feeding drive | AC servo motor |
| Bending drive | AC servo motor |
| System pneumatic pressure | 0.8Mpa |
| Size | 1700×1400×1200mm |
| Weight |
700kg |

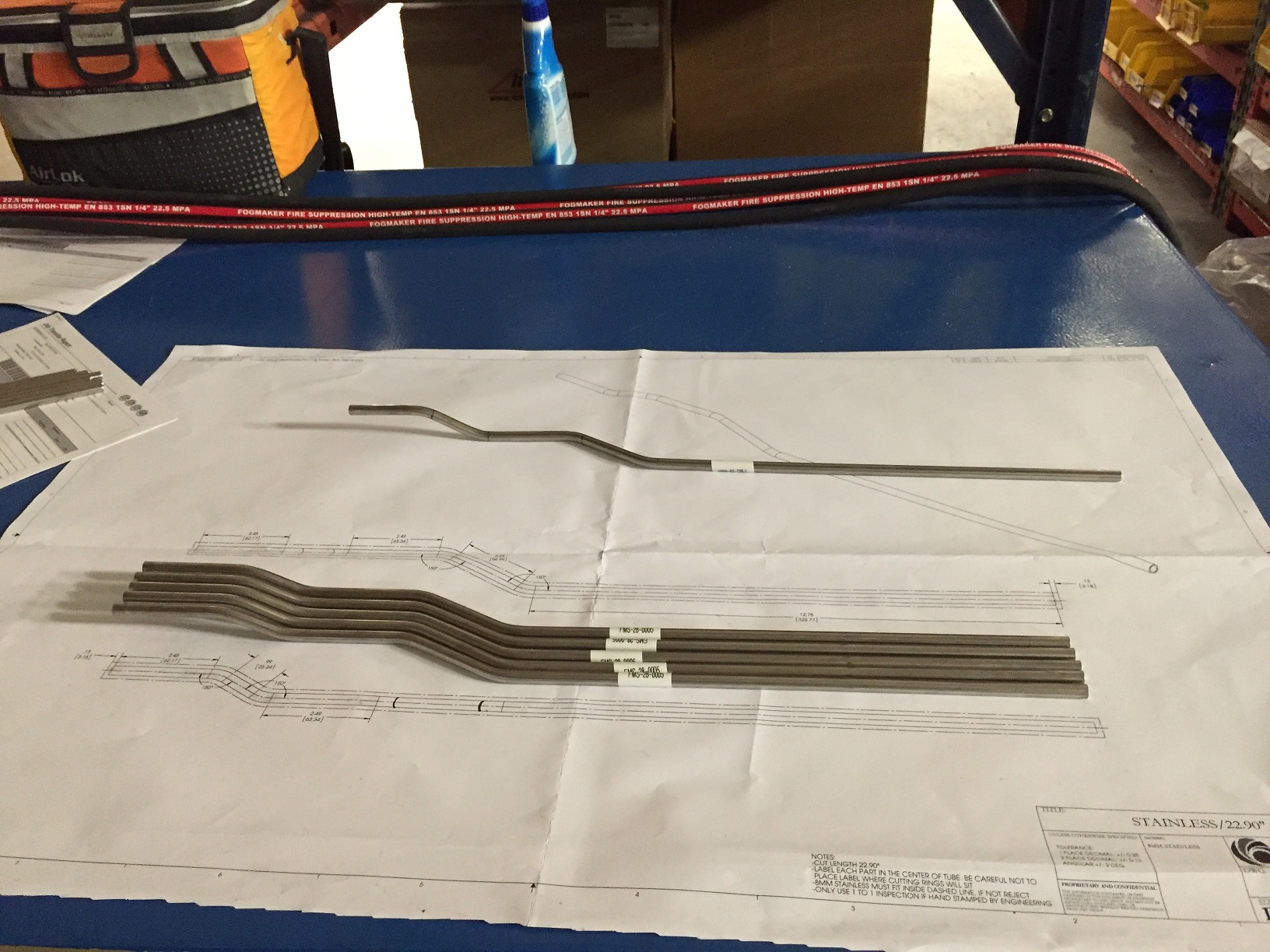

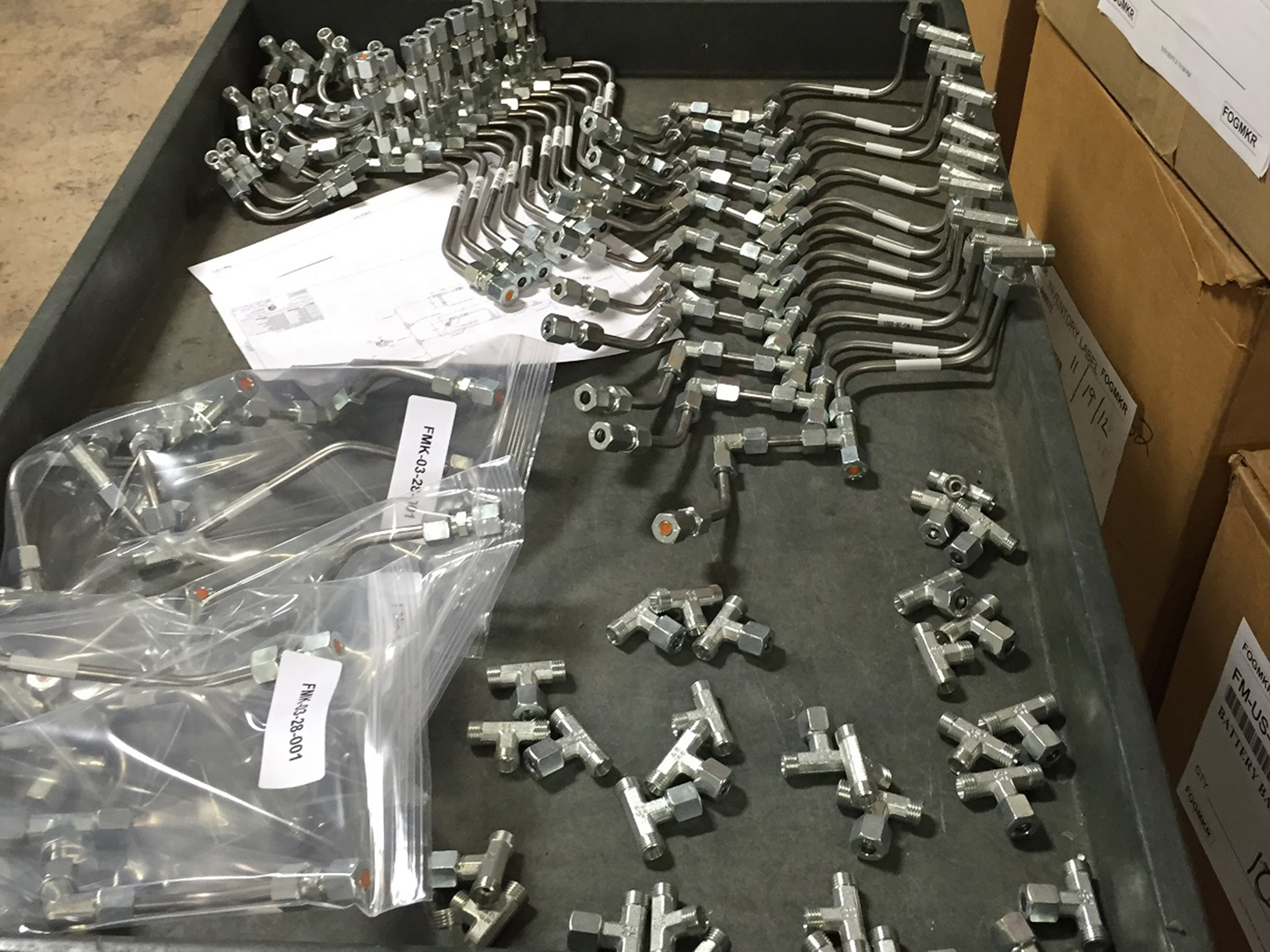

Application
