STB-10CNC-3A Super Fast Tube Bending Machine
STB-10CNC-3A Super Fast Tube Bending Machine
STB-10CNC-3A is pneumatic 3-axis servo tube bender, which can make all kinds of small tube bending or capillary tube bending, such as the oil tubes, A/C tubes, brake tubes, some tubes in electrics and so on. It is a very fast and accurate machine with different functions for different shapes of the tube bending. Welcome to get more information of the machine by the website or contact STM.
The body is made through welding, the mechanical part through assembly; using premuim pneumatic system and electronic control system.
1. Automatic CNC pipe bending machine;
2. Equipped with 3 programmable axis and one-stack tooling;

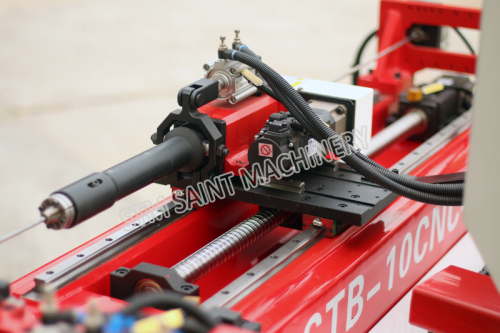

3. Feeding: servomotor drive with the ball screw; Rotation: servomotor drive with reducer (the servomotor from Mitsubishi J3/J4);
4. Bending: Servomotor bending with reducer;
5. Top brand pneumatic parts and Mitsubishi PLC unit;
6. Automatic lubrication system for moving areas (optional);
7. Self-diagnostic system, detecting the error immediately;
8. Multiple groups pipe-bending information storage;
9. Touch screen system and human/machine interface control provide user friendly operations;

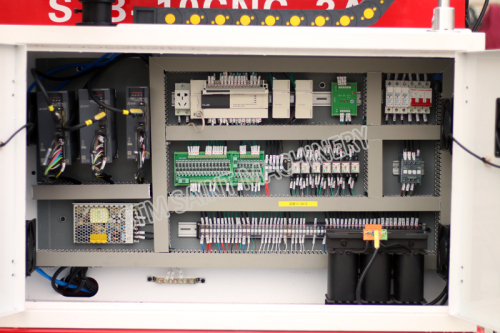

10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
1. Automatic CNC pipe bending machine;
2. Equipped with 3 programmable axis and one-stack tooling;
3. Feeding: servomotor drive with the ball screw; Rotation: servomotor drive with reducer (the servomotor from Mitsubishi J3/J4);
4. Bending: Servomotor bending with reducer;
5. Top brand pneumatic parts and Mitsubishi PLC unit;
6. Automatic lubrication system for moving areas (optional);
7. Self-diagnostic system, detecting the error immediately;
8. Multiple groups pipe-bending information storage;
9. Touch screen system and human/machine interface control provide user friendly operations;
10. Electric cabinet cooling fan and the hydraulic cooling system ensure the equipment long-time work stably under the high temperature.
